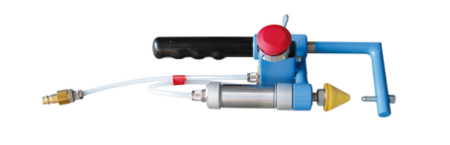

Nitrogen filling machine for powder fire extinguisher
No. GV-MNKN2.303 000
Nitrogen filling unit for safe and exact pressurizing of extinguishers with nitrogen including clamping device.
The unit consists of:
- Inlet pressure gauge
- Outlet pressure gauge
- Air hose 1 m
- Adaptor: 18 x 1,5 mm,22 x 1,5 mm
- Manual clamping device
- Accessories available at extra charge:
- N2-pressure reducer
- N2-bottle
- N2-hose
- Adaptors: 12 x 1.0 mm.12 x 1.5 mm,14 x 1.5 mm,16 x 1.5 mm
- All sizes available on request
TECHNICAL DATA | |
Construction | steel construction |
Weight | approx. 8.5 kg |
Safety valve | 18 bar |
Dimensions (l x w x h) | approx. 800 x 350 x 300 mm |
Colour | hammer finish painted blue |
Artikelnummer: GV-MNKN2.303000
Kategorie: Stickstoff-Füllanlagen
